EVO 8-9 Front Mount Intercooler Kit

Description

EVO 8-9 Front Mount Intercooler Kit for 2003-2006 Mitsubishi EVO VIII, IX

Features:

Pressure Checked at 35psi
Bolt on design retains crash beam (3″ and 3.5″)
Fills entire grill with core
Eliminates excessive piping
Full Mandrel Bent 2.5″ Piping
Stainless Steel T-Bolt Clamps
3-Ply Reinforced Silicone Couplers
Short Route: Two feet shorter than stock
Lower piping flows over 20% more than stock
Upper Piping flows over 12% more than stock

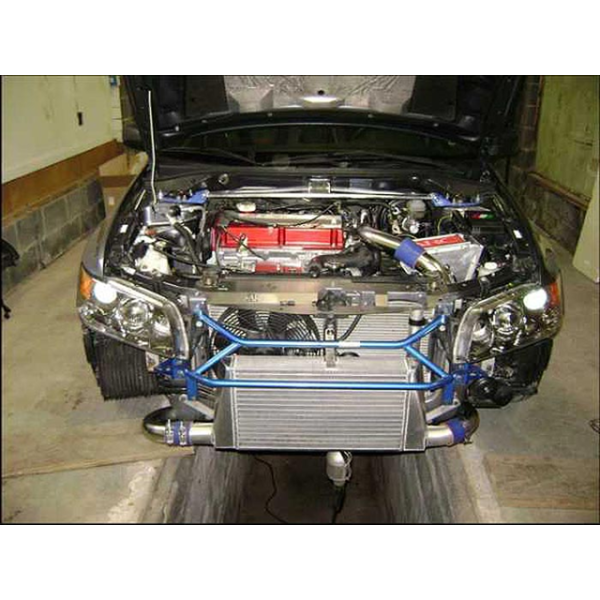

24×11.5×3.0″ Bar & Plate Core, 1058cfm-700hp at 79% efficiency (Direct Replacement – Requires Minor Trimming on EVO 8 – See Pictures)
24×11.5×3.5″ Bar & Plate Core, 1127cfm-750hp at 80% efficiency (Direct Replacement – Requires Minor Trimming on EVO 8 – See Pictures)
24×11.5×4.0″ Bar & Plate Core, 1219cfm-820hp at 81% efficiency (Direct Replacement, – May require trimming of crash beam)
Recirculation kit is only needed for Mini Battery UICP (Stock battery UICP uses stock recirculation pipe)
Wrinkle Black Piping

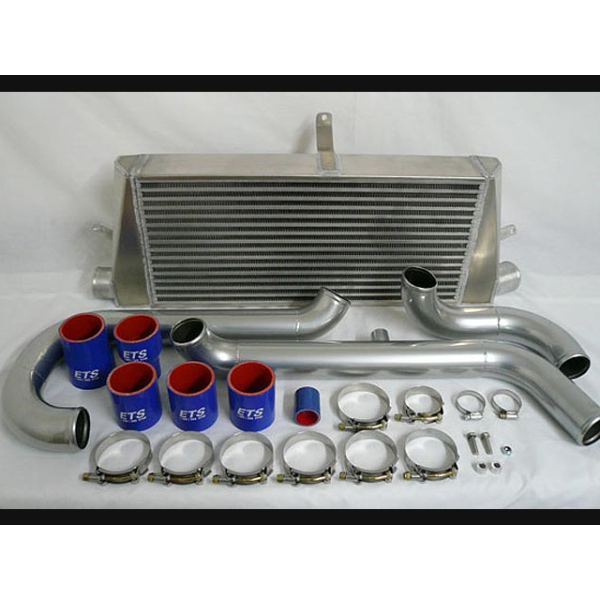

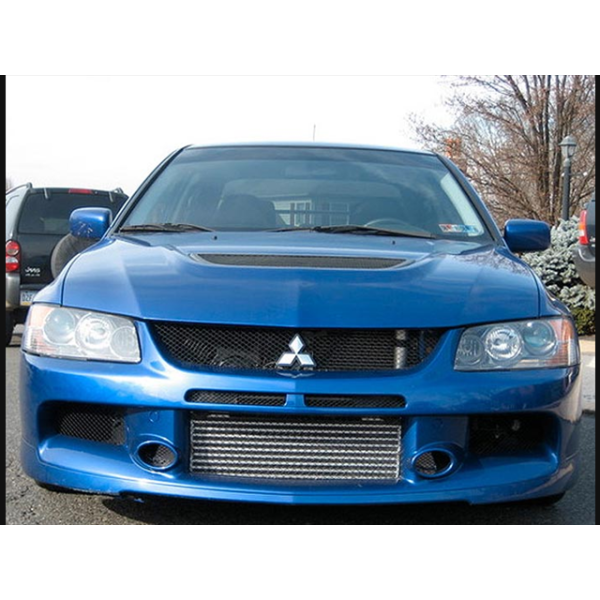

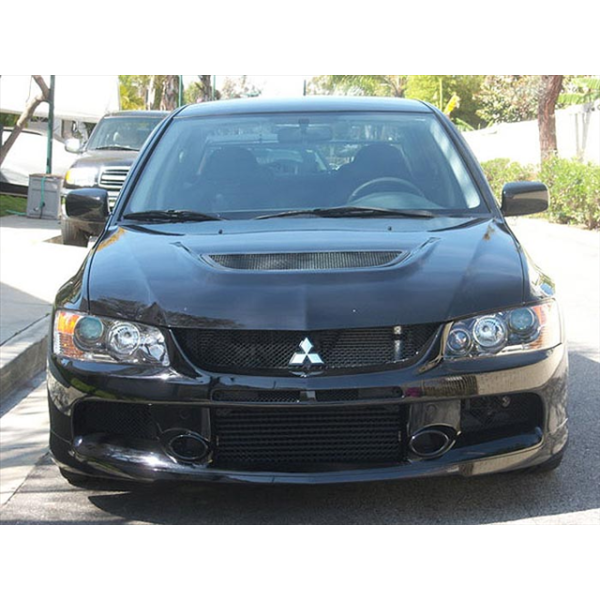

The Lancer EVO Intercooler is the best on the market, bar none. It features bolt on installation, eliminates the two up-pipes to the intercooler and fills the whole grill with core for a killer look and maximum efficiency. This unit also retains the factory crash bar and splash pans (3″ and 3.5″). The kit includes the intercooler, mounting hardware, silicone couplers, and SS T-Bolt Clamps. Check out the features below:

The EVO Piping kit is designed to eliminate many of the unnecessary bends in the stock piping. The piping starts off by immediately expanding into 2.5” diameter right off of the turbo elbow. This replaces the tiny 1 3/4” factory pipe and instantly frees up 15hp and greatly improves spool up. From here it follows the core support and wraps around to mate up to the intercooler. Once the air passes through the intercooler, the piping takes a short direct path around the core support, over the transmission and straight up to the throttle body. This unique routing is over two feet shorter than the stock routing which results in greatly improved spool up and transient response. With an 11% increase in cross sectional area, flow is increased as well.

Also available for those with a Front Power Brace from Cusco. We make a bolt on intercooler that fits within the brace.
